13" 1994-04 Cobra Front Brakes on Mustang II Spindles (factory or dropped factory style)

13" 1994-04 Cobra Front Brakes on Mustang II Spindles (factory or dropped factory style)

Regular price $299.00 USD
Regular price Sale price $299.00 USD
Sale Sold out

Mustang2 Cobra Brake Conversion bracket kit is for MUSTANG II or Heidt's 2" drop disc brake spindles.

Mustang2 Cobra Brake Conversion Front Caliper Mounting Kit Uses 1994-2004 Cobra 13" front brakes What size wheels fit these brakes?

17" WHEELS ARE REQUIRED.

American Racing Torque Thrust II 17” will require a thin spacer on FRONT Cobra or GT calipers.

What hubs does the kit use?The bracket kits for the Mustang II or Heidt's 2" Drop Disc Brake spindles use the V8 drum brake hubs from a 65-73 Mustang or mid size Ford/Mercury.

What bearings and seals do you use?  Use Mustang II bearings and seals

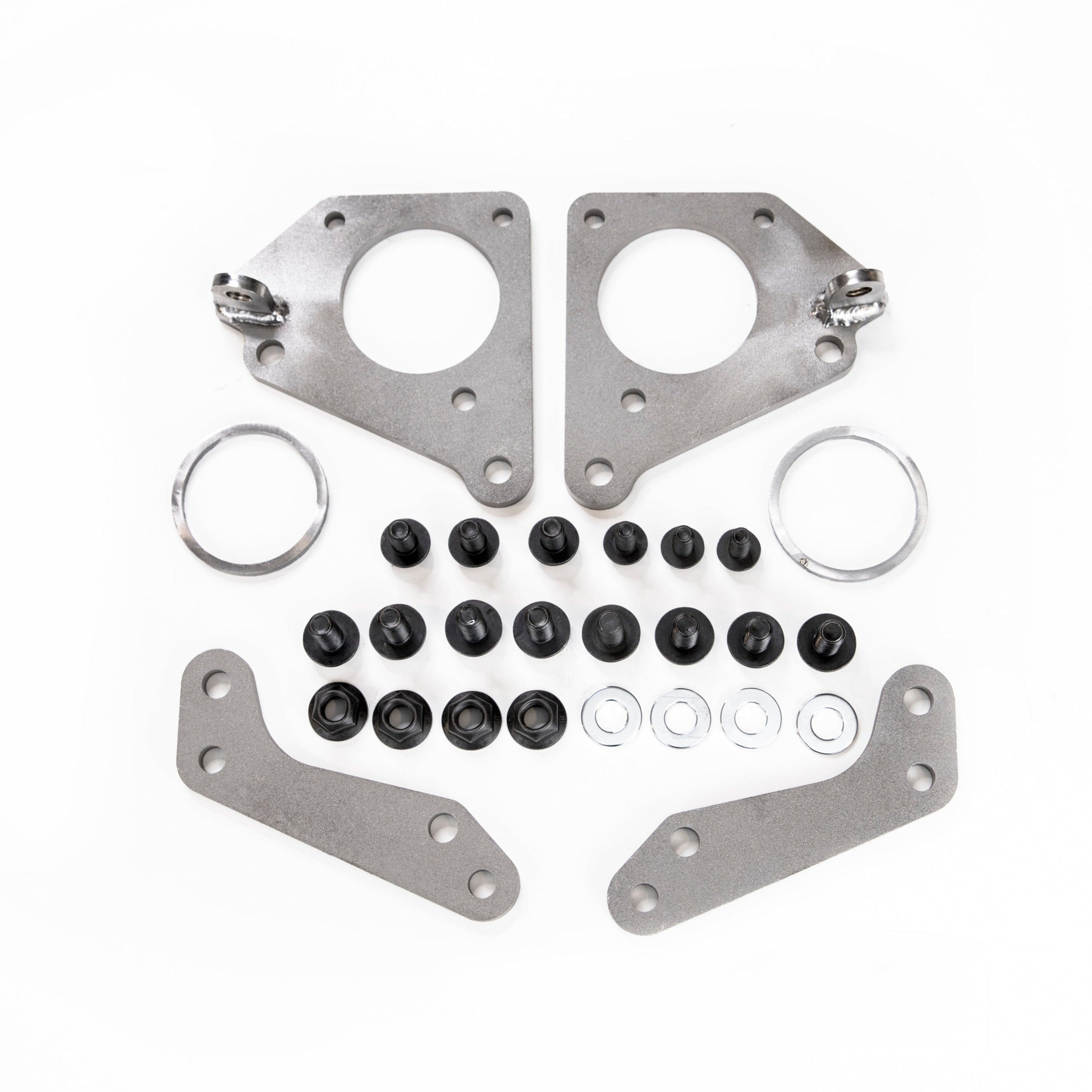

What does the kit included? Custom Caliper Mounting Brackets Grade 8 fitted bracket bolt kit Caliper mounting bolts w/flanged head Rotor hub-centric ring (positively centers rotor on hub)

Will Rod & Custom drop spindles work with this kit?  Since the Rod & Custom drop spindles have a proprietary brake bolt pattern, stock Mustang II brakes will not bolt up.  Since the MustangSteve brackets are designed to fit the stock Mustang II brake bolt pattern the MustangSteve brackets can be used but will require modification to match R&C non-stock bolt pattern. If you plan to use MustangSteve brackets notify us before ordering.  We will leave the welded tab on the bracket un-welded so you can relocate it and weld it to fit your spindles.  You may also be required to relocate a drilled hole also.

Will American Racing Torque Thrust II 17” wheels work with this kit?  Unfortunately they will will not clear Cobra or GT calipers. 94-04 Cobra hoses:  Note they have a 3/8” SAE inverted flare on one hose and 7/16” inverted flare thread on the opposite side. (On frame end of the hose)  Depending on the year of the calipers, the banjo bolts can be fine or coarse thread.

Mustang2 Cobra Brake Conversion kit fits 64-1/2 to 73 Mustangs (and other Fords using similar spindle)


DISCLAIMER These items are considered race only, or off-road.  Improper installation or any type of brake failure can cause serious injury or death.  Car owner assumes all risk of failure of any kind upon installing these brake parts. MustangSteve is not responsible for any consequences should a failure of any kind occur.  These parts must be installed by someone who is competent in installing and modifying automobile brake systems.
