Tremec TKX Hydraulic Clutch Kit

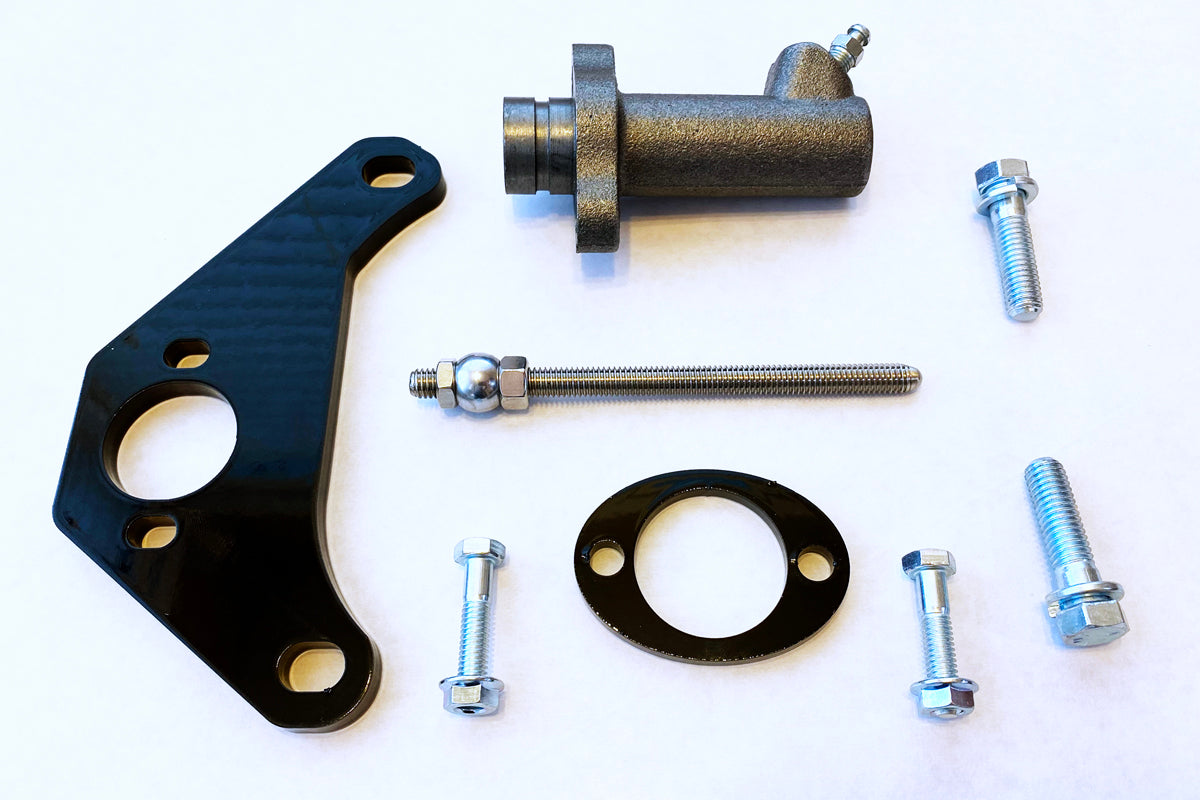

This TKX slave cylinder kit provides everything needed to install a slave cylinder on to a TKX series transmission.

• CNC cut and powder coated slave cylinder bracket

• 7/8" bore slave cylinder

• Stainless steel slave cylinder pushrod

• CNC cut and powder coated firewall reinforcement bracket

• Hardware for the slave cylinder bracket

• Instructions for bolting up the slave cylinder bracket

This kit is different from other kits on the market. It is made of 3/8” plate where most are 1/4” It is also a common parts house slave cylinder so if you ever had to replace it, it is as simple as going to your local auto parts store. The master cylinder bracket is cut out of 1/4" plate steel. The powder coating is black. The powder coating is gloss black.

This kit uses a push slave cylinder and requires a bellhousing that actuates from back to front.  The master cylinder and connecting lines are not included as different applications my require variations of these parts.

 Note:  while the TKO and TKX have the same transmission bolt pattern and use the same bellhousing, the shape of the TKX case will not allow a TKO bracket to be used for it.  This bracket was designed SPECIFICALLY for the TKX

The master cylinder and connecting lines are not included as different applications my require variations of these parts.
