Description

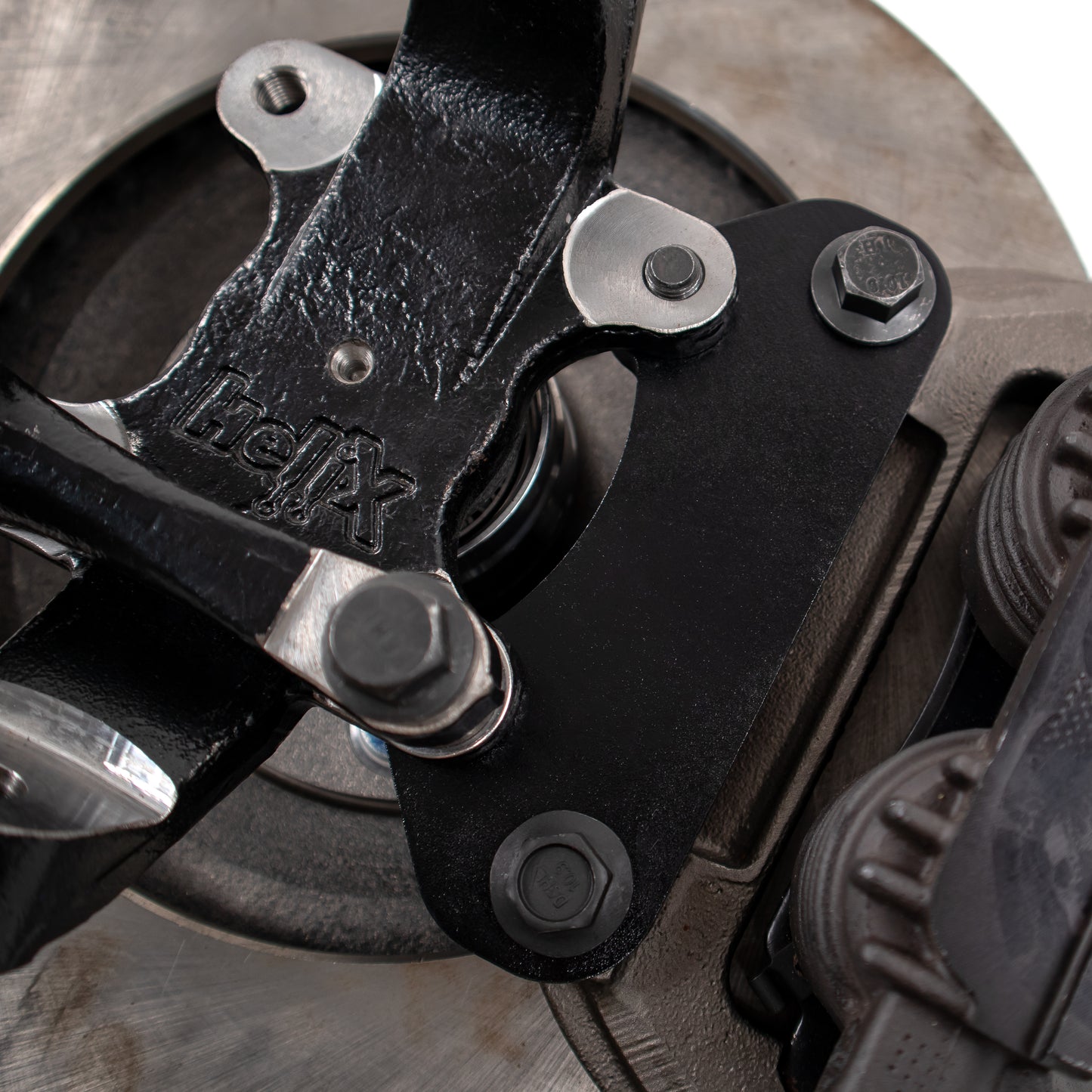

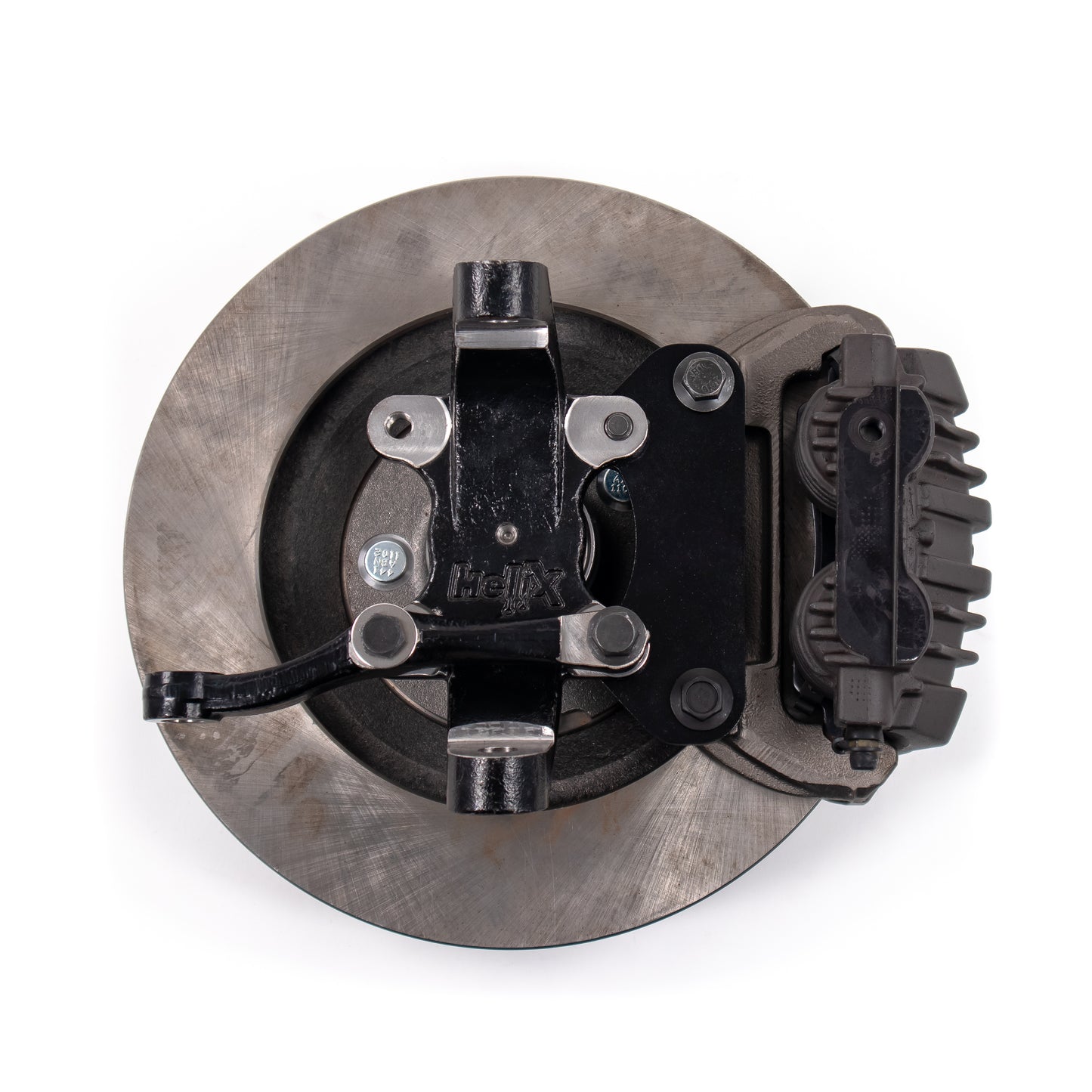

Modular Mustang II Cobra and Brembo Brake Conversion bracket kit
(Wilwood or Helix style).

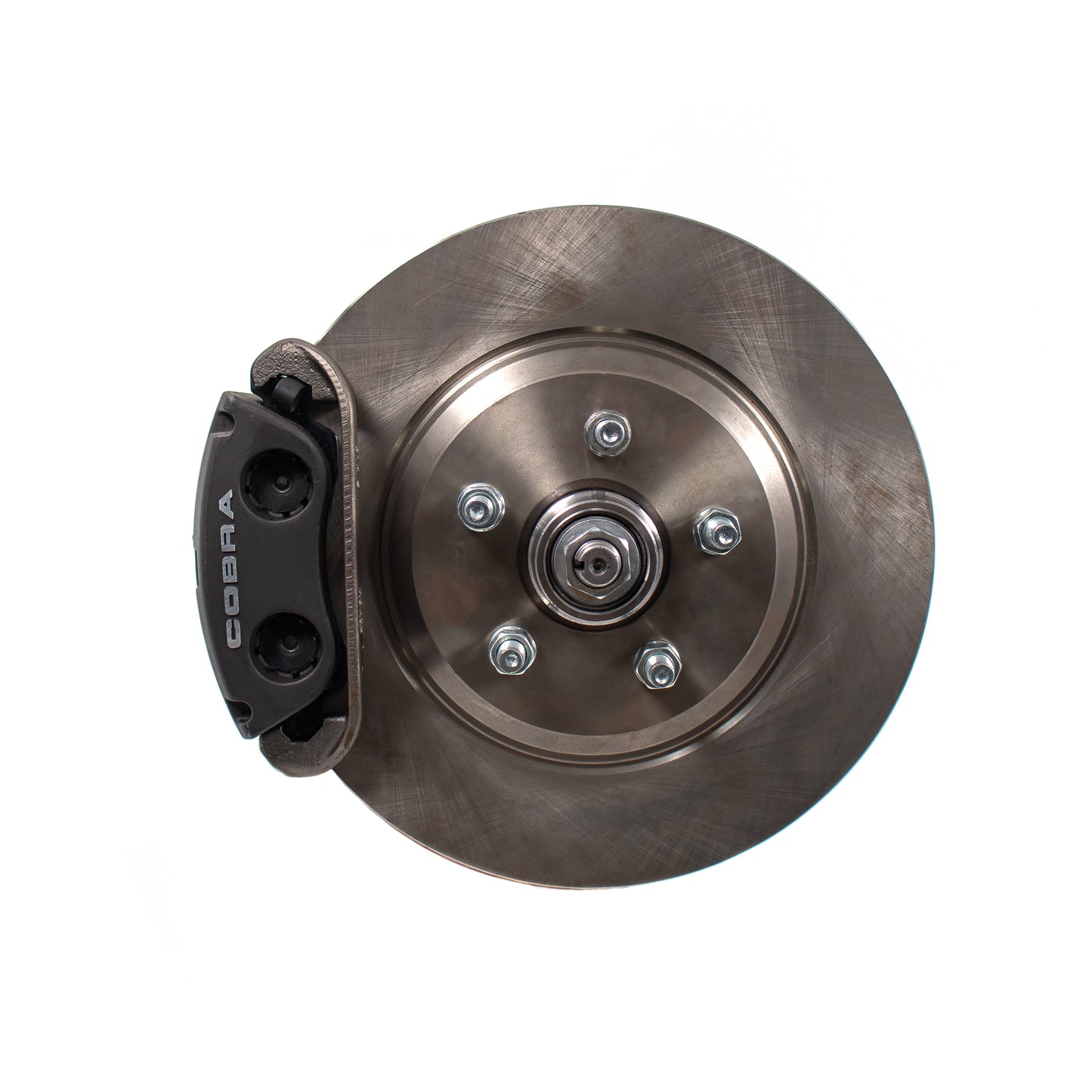

Modular Mustang2 Cobra Brake Conversion Front Caliper Mounting Kit Uses 1994-2004 Cobra calipers with 13" rotors or 2015-Present GT PP 6-Piston Brembo calipers with 15" rotors
What size wheels fit these brakes?

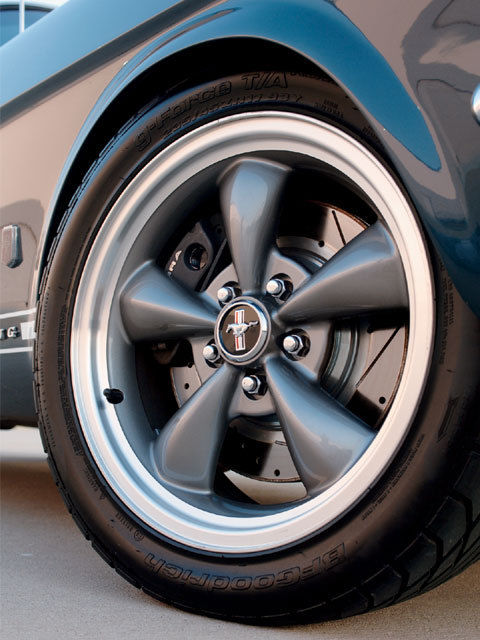

17" WHEELS ARE TYPICALLY REQUIRED FOR COBRA

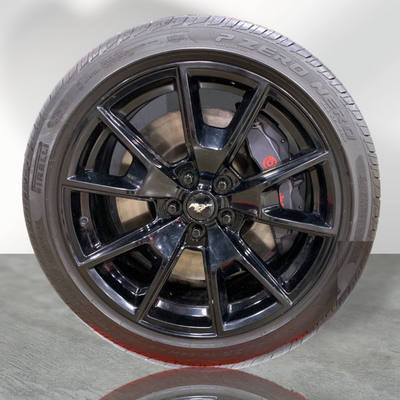

19" WHEELS ARE TYPICALLY REQUIRED FOR GT PP BREMBO 6-PISTON
American Racing Torque Thrust II 17” will require a thin spacer on FRONT Cobra or GT calipers.
What hubs does the kit use? The bracket kits for the Mustang II or Heidt's 2" Drop Disc Brake spindles use the V8 drum brake hubs from a 65-73 Mustang or mid size Ford/Mercury.
What bearings and seals do you use? Use Mustang II bearings and seals

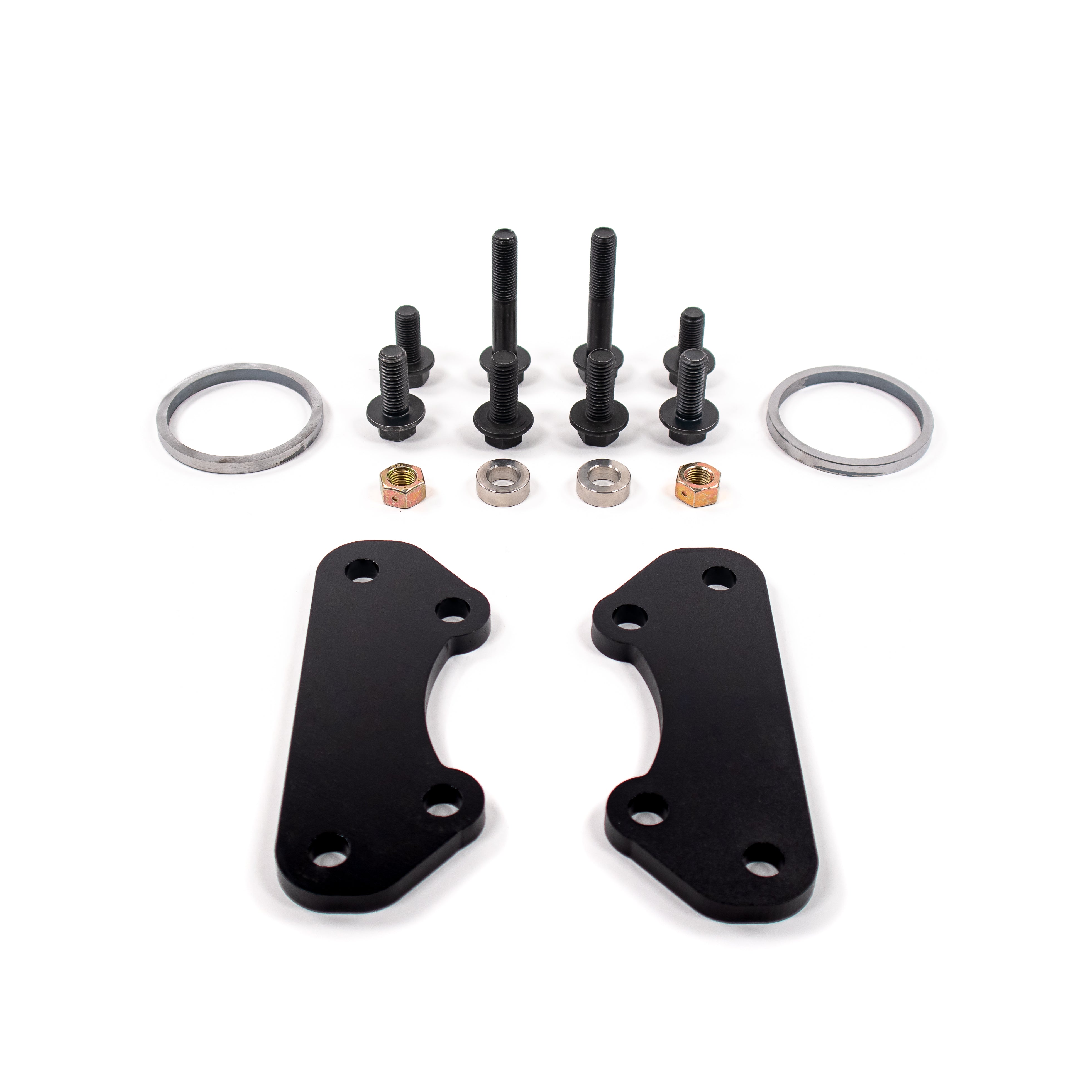

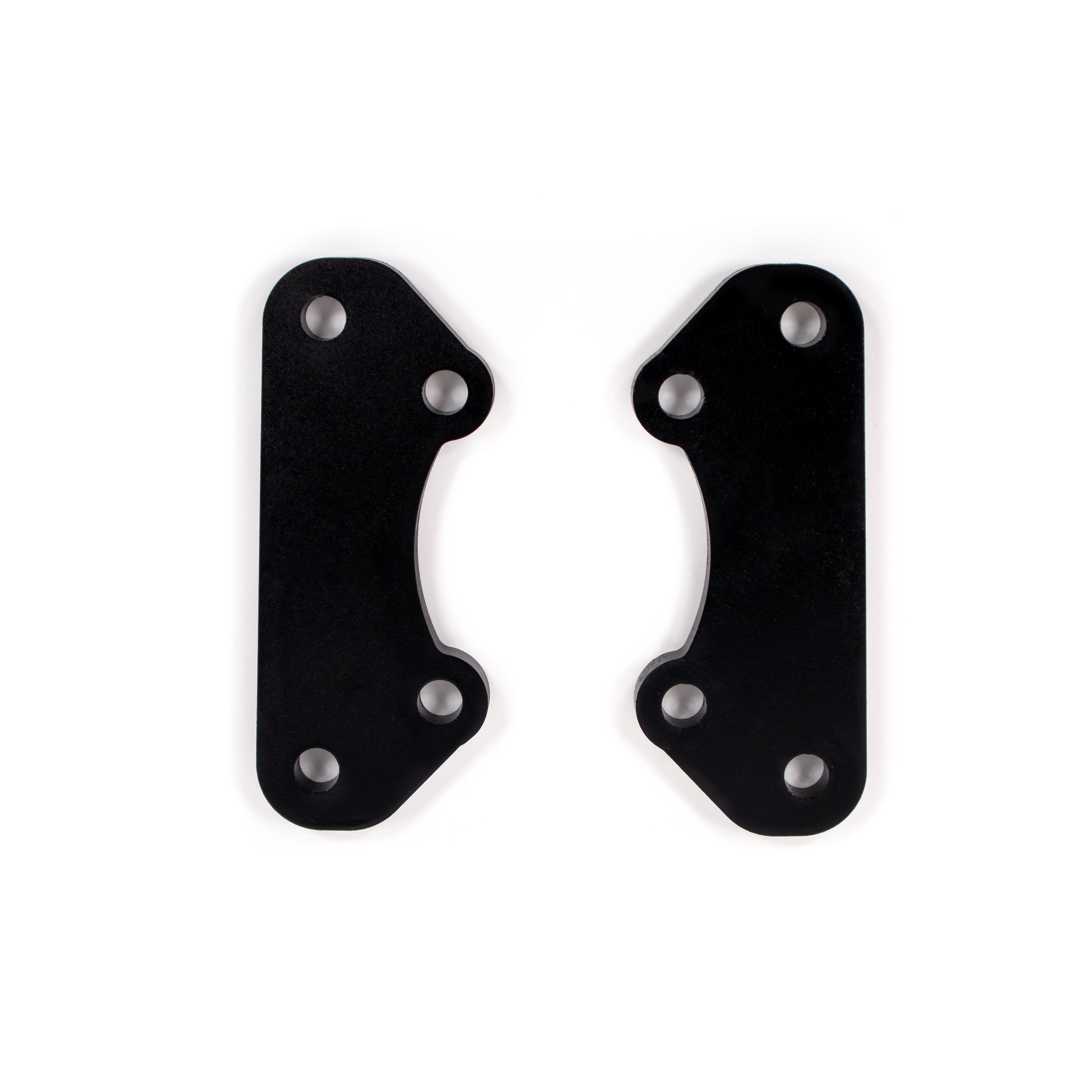

What does the kit included? Custom Caliper Mounting Brackets Grade 8 fitted bracket bolt kit Caliper mounting bolts w/flanged head Rotor hub-centric ring (positively centers rotor on hub)
Modular Mustang2 Cobra Brake Conversion kit fits 64-1/2 to 73 Mustangs (and other Fords using similar spindle)
DISCLAIMER These items are considered race only, or off-road. Improper installation or any type of brake failure can cause serious injury or death. Car owner assumes all risk of failure of any kind upon installing these brake parts. MustangSteve is not responsible for any consequences should a failure of any kind occur. These parts must be installed by someone who is competent in installing and modifying automobile brake systems.
