11.75" 2005-14 Mustang (S197) Rear Brakes on your Classic Ford (Large Bearing)

Rear Caliper Mounting Kit - large bearing 2005-2014 Mustang (all) 11.75" rear brakes

REQUIRES AT LEAST 16" WHEELS

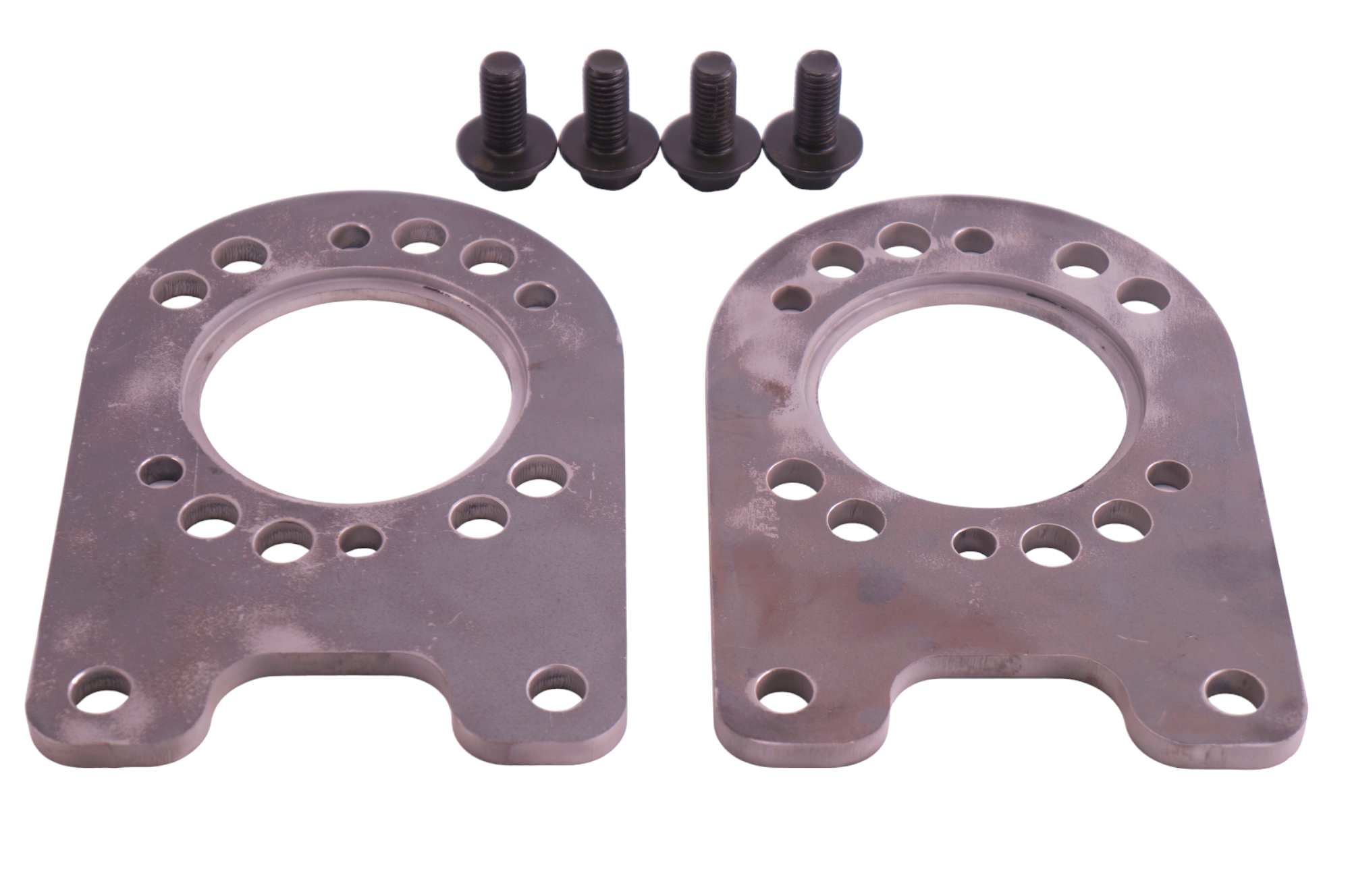

Includes:

Caliper Mounting Brackets

Brackets replace bearing retainer and bolt to housing w/existing bolts

Caliper mounting bolts w/ flanged head

Instructions can be found here

Fits 9" rear ends with large bearing. 3.150" diameter bearing with 3.50" x 2.375" bolt pattern with 1/2" bolt holes 3.150" diameter bearing with late Ford bolt pattern with 3/8" bolt holes

American Racing Torque Thrust II 17” will require a thin spacer on FRONT Cobra or GT calipers.

Note:  All 65-73 Mustang 8" & 9" rear ends were small bearing.

Versailles 9" uses large bearing.

BRACKET KITS for 8" or 9" Ford Rear Ends Note:  All 65-73 Mustang 8" & 9" rear ends were small bearing. Versailles 9" uses large bearing.

16" wheels required

DISCLAIMER These items are considered race only, or off-road.  Improper installation or any type of brake failure can cause serious injury or death.  Car owner assumes all risk of failure of any kind upon installing these brake parts. MustangSteve is not responsible for any consequences should a failure of any kind occur.  These parts must be installed by someone who is competent in installing and modifying automobile brake systems.
