13" 2015-17 Mustang GT (S550) Rear Brakes on your Classic Ford

Rear Caliper Mounting Kit for 2015-2017 Mustang GT 13" Rear Brakes

Requires 17" wheels or larger. Designed for 8" or 9" small rear bearing (2.835" diameter) and 9" or 8.8" large rear bearing (3.150"/2.840: diameter).

Note: All 65-73 Mustang and Mustang II 8" & 9" rear ends use small bearings; Versailles 9" uses large bearings

How to Identify Bearing Size:

• Small bearing housing: 3/8" T-bolts (nuts remove with a 9/16" socket)

• Large bearing housing: 1/2" T-bolts (nuts remove with a 3/4" socket)

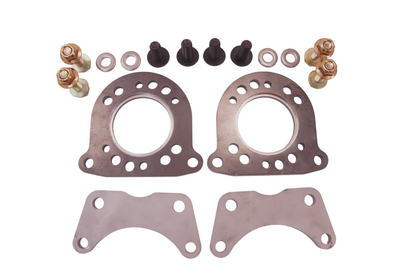

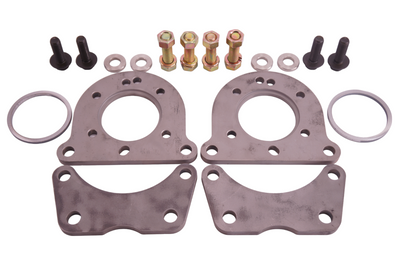

Includes:

• Custom caliper mounting brackets
• Grade 8 fitted bracket bolt kit
• Caliper mounting bolts with flanged head
• Rotor hub-centric ring

Disclaimer:

For race or off-road use only. Improper installation or brake failure can cause serious injury or death. The car owner assumes all risk of failure upon installation. Parts must be installed by a competent professional. MustangSteve is not responsible for any consequences from failure.
