Master Kit for 1970 Mustang Cable Clutch System for Power Brakes

MASTER KIT w/ Power Brakes for 1970 Mustang (Adjustable) Not recommended to use with long tube headers.

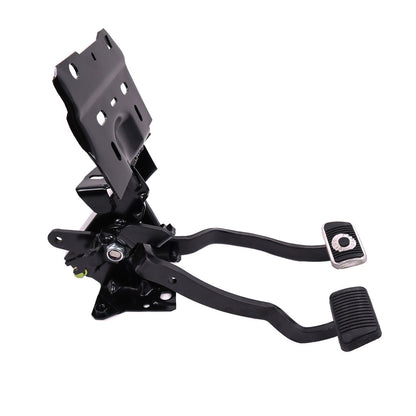

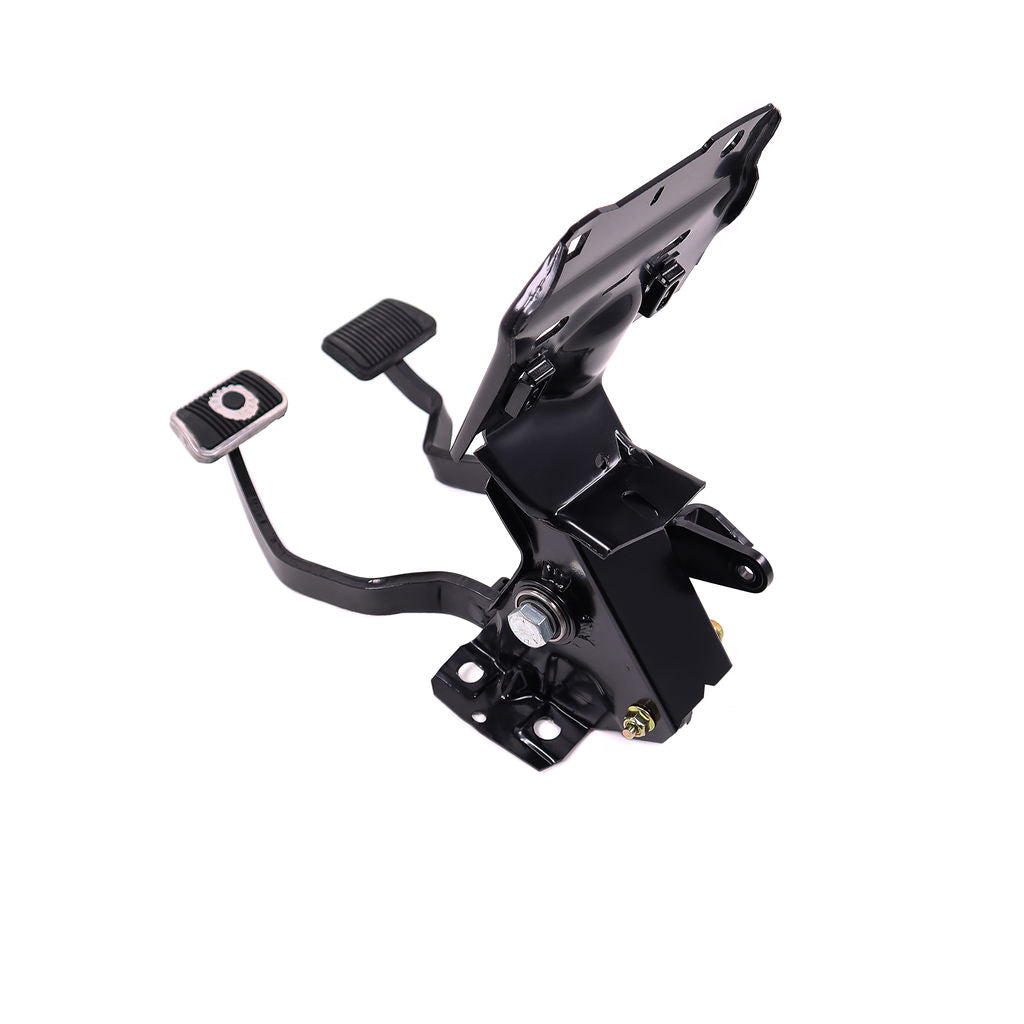

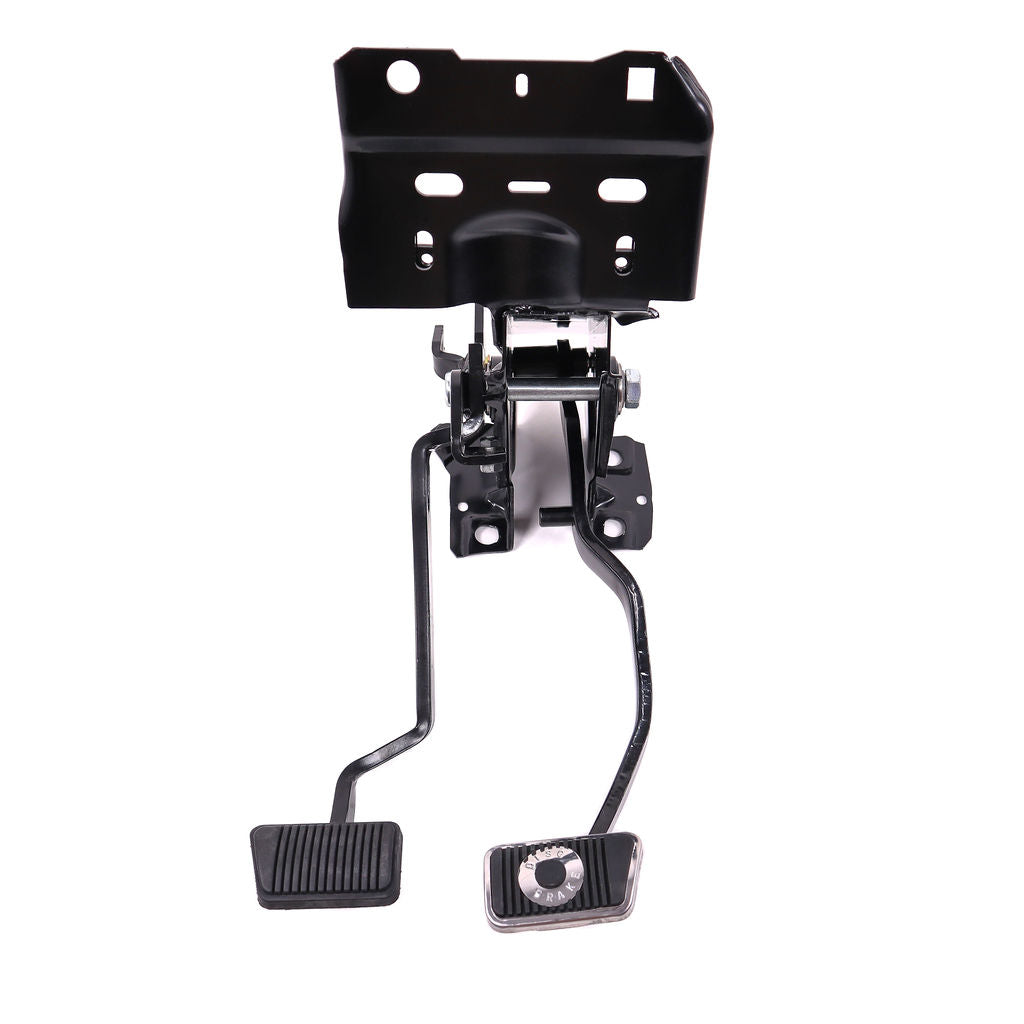

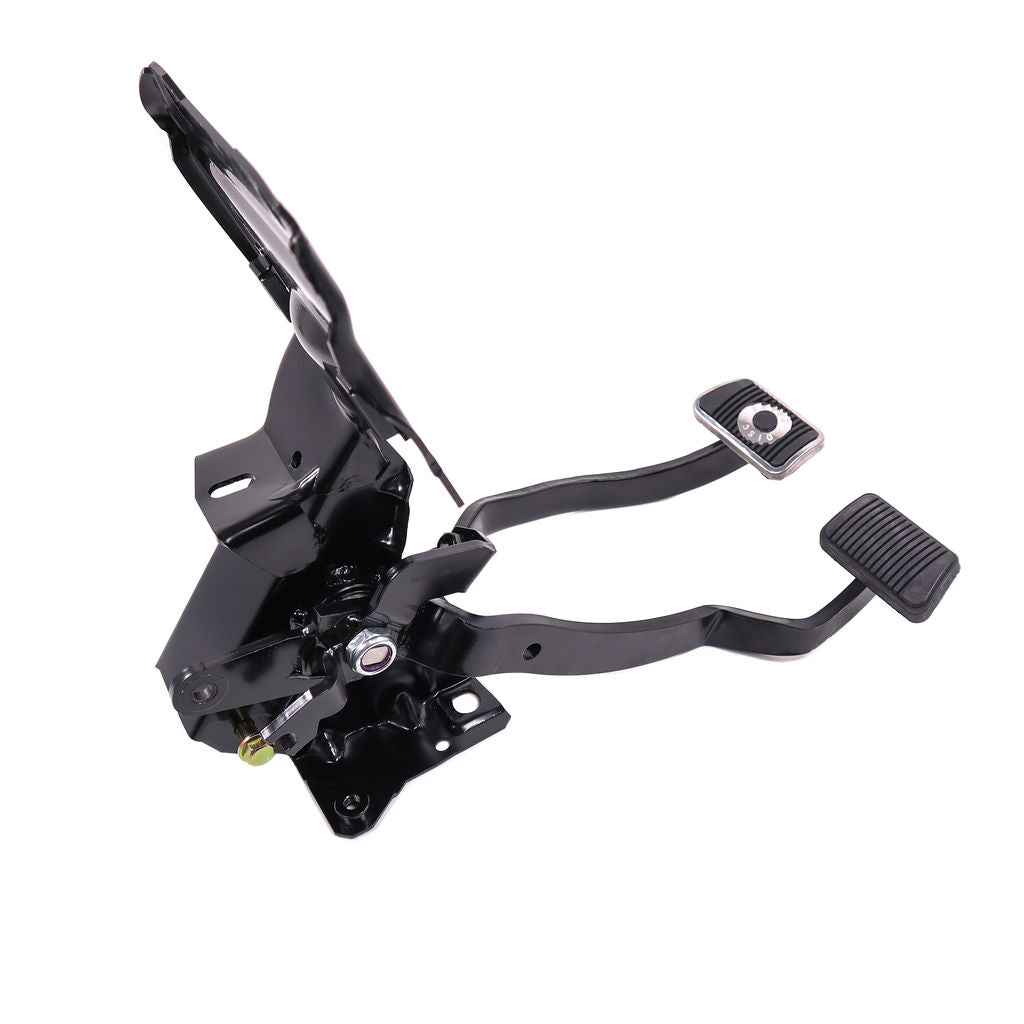

As shown in the picture, includes:

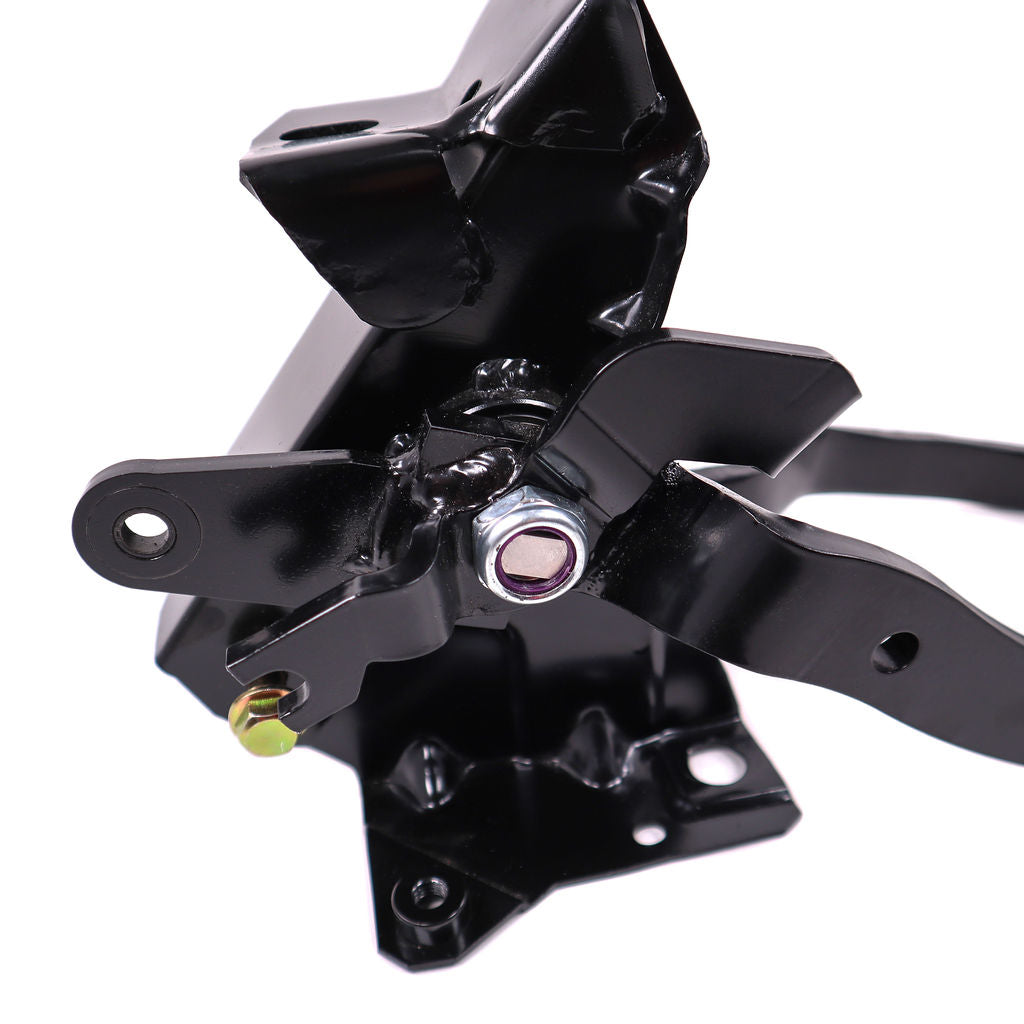

PEDAL SUPPORT WITH BALL BEARINGS CLUTCH

BRAKE PEDAL

CLUTCH PEDAL

ADJUSTABLE CABLE STOP

FIREWALL BRACE

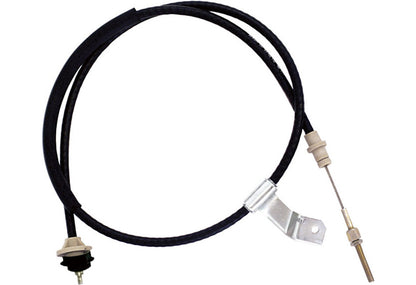

CABLE

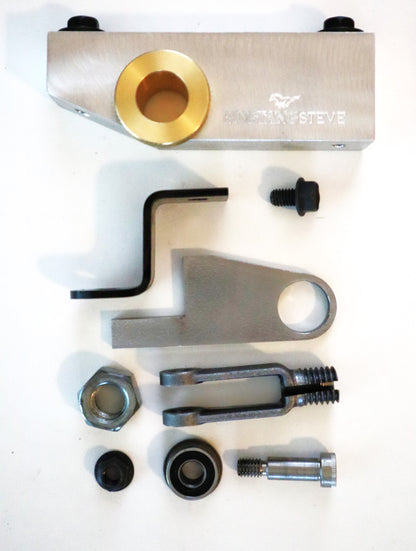

You can use this cable clutch kit with an original classic style bellhousing, but you must install a cable type release arm and a new pivot bolt (fulcrum) in the bellhousing.   Click Here here for those instructions.

I buy used pedals and pedal supports from 65-70 Mustangs and Cougars. Email us at info@mustangsteve.com if you have extras you wish to sell. Using this kit with a Toploader or T10 Transmission: The quadrant kit is designed to be used with a T-5 or Tremec conversion and a cable clutch.  If you want to use the cable clutch with an original Mustang standard transmission,  you will have to do a little fabrication. In order to make the cable clutch work with the original type bellhousing, you must install a cable type release arm and a new pivot bolt (fulcrum) in the bellhousing.  You will need a Mr. Gasket replacement fulcrum bolt and a Ford release arm from a 87-93 5.0 Mustang originally equipped with a T5.  You will need to have an aluminum plate welded into the bellhousing and then thread a 1/2" hole in the plate for the new fulcrum bolt.  You will also need to fabricate a cable housing stop to go outside the bellhousing.
