Steering rebuild kit with roller idler arm – manual / power steer 67-69 Falcon Comet Fairlane

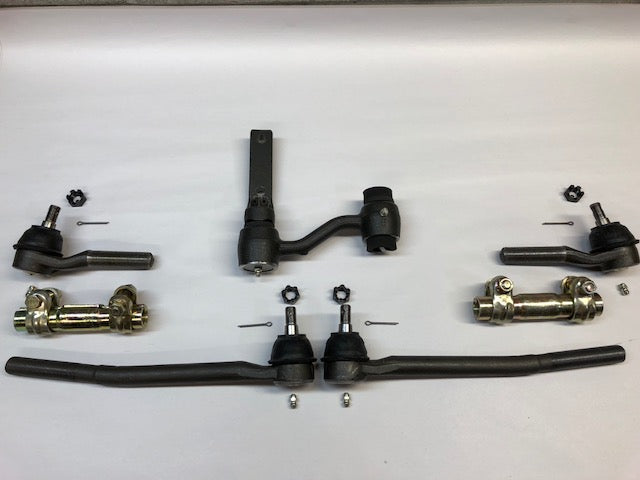

This kit Includes our roller idler arm, 2 inner tie rod ends, 2 outer tie rod ends and heavy duty adjusting sleeves.

There is just one style of these idler arms but Ford didn’t put the same center link in all of the 66-69 Falcons, Comets and Fairlanes. Some had a idler arm pin that is 2-1/4″ from the flat part of the center link to the cotter pin hole, like in the photo below. Some have an idler arm pin that is longer, the cotter pin hole is 2-5/8″ from the flat part of the center link.

If your center link has the longer pin (2-5/8″) this idler will fit as is. If you have the shorter (2-1/4″) long pin, you will need to shorten the tube on the center link side of this idler arm 3/8″. We recommend removing 1/4″ from the top and 1/8′ from the bottom of the idler. A cut off wheel or grinding/disc sanding will work.

Specification:-

• Weight: 3 lbs
• Dimensions:  8 × 5 × 2 in
• Part Number: ORP-1209
