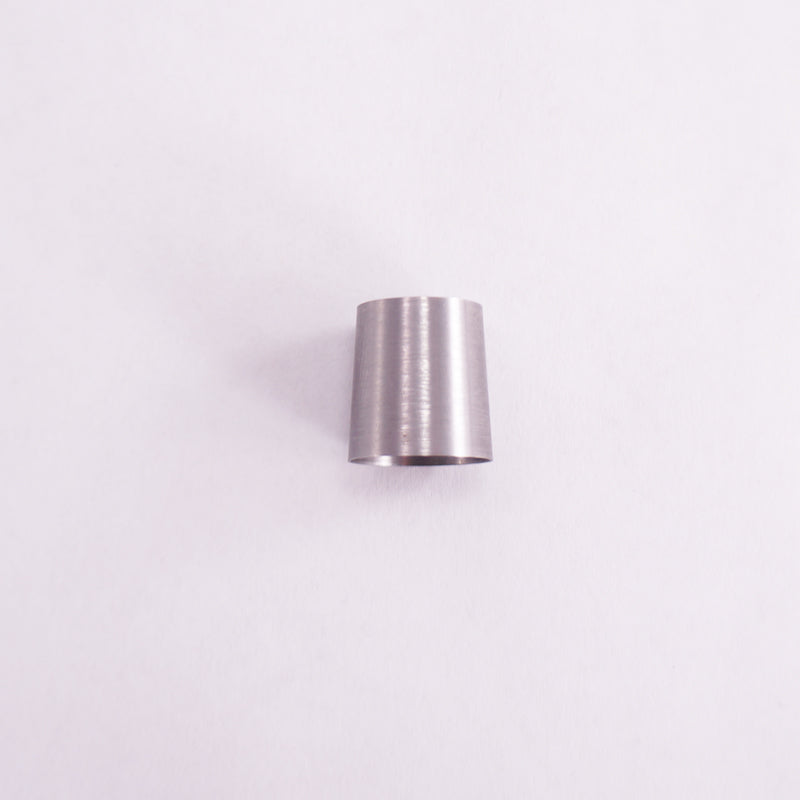

Bushing for 67-69 Mustang Tie Rods using Granada Spindles

MustangSteve

Bushing for 67-69 Mustang Tie Rods using Granada Spindles

$54.00

Fits 67-69 Mustang, Cougar, Most 64-66 Fairlanes, Ranchero, Comet into 75-80 Granada, Monarch, Versailles Spindle.

(Pricing is for ONE bushing)

Instructions

NOTE: Spindles with a rotor thickness of 1" or more are NOT Granada or Versailles spindles. Some LTD II and Cougar spindles from around 1975-79 may appear similar to Granada and Versailles spindles, but they WILL NOT FIT any Mustang or Cougar models from 1964-1/2 to 1973.

All Granada and Versailles rotors are 0.875" thick, with minimum thickness of 0.810" Part Numbers for Lincoln Versailles Spindles (1977-80) Right: D7DY 3105A Left: D7DY 3106A Part Numbers for Granada / Monarch  Spindles (1975-80) 5D7AA  275 5D8AA  275 If you have spindles that have a part number starting with C6, they are typically 67-69 drum spindles and NOT 66 spindles as the Ford numbering system would normally indicate.

WHY   DO   I   NEED   THESE   BUSHINGS  ??? 65-66 Mustangs with V-8 and POWER STEERING have a unique driver side outer tie rod. When installing disc brakes from Granada, Maverick, Versailles, or 70-73 Mustang or Cougar on a 65-66 Mustang with power steering, a later model tie rod can not be substituted for the unique driver side unit.

Six-cylinder Mustangs come with a small outer tie rod end that is incompatible with larger disc brake spindles. Previously, the only solution was to install a complete V-8 Mustang steering setup to equip 6-cylinder cars with disc brakes. Now, you only need two adapter bushings, allowing the outer tie rods to fit seamlessly into the spindles without any additional modifications! However, using any spindle other than the stock spindle can lead to bumpsteer problems in six-cylinder vehicles.

Any pre-1970 Mustang requires larger outer tie rods installed in order to install the disc brakes. For some cars, a simple change to the Granada or 1970 Mustang outer tie rod can be implemented. That is fine if new tie rods are actually needed, but two of these adapter bushings can do the trick with a lot less work!!! Plus the added benefit of never having to replace the tie rod with "custom fit" tie rods that weren't original on the car. The bushings can be loc-tite mounted into the spindle and become an integral part of the spindle from then on. YES!!! The tie rod bushings WILL FIT Falcons, Cougars, and all other small Fords of the era that used the similar sized tie rods as the 65-69 Mustang

NOTE: This is a modification to the steering on your car. MustangSteve will not be held responsible from any consequences of modifications using this product. Owner must determine suitability and determine that the installation is done safely.
